ZYLtech MGN15 TYPE C Linear Rail with Single or Double Block

$35.95 - $89.45
(2 reviews) Write a Review
SKU:
HW-MGN15
List Price:
$35.95 - $89.45
Sale Price:
Availability:
In Stock
Order Now:


 If you order a 250mm custom length rail then you will receive one 250mm rail with smooth ends.

 If you need multiple rails in a custom length then you must order two custom lengths. For example if you need two 250mm rails then each of them will require a custom length purchase.

 1.Select the custom length of your choice

 (<500mm or <1000mm).

 2.Then select the number of carriages.

 3.Specify your custom length in the Customer Note section.

 4.Select the quantity needed using the up or down arrows.

 Due to saw limitations and the hole spacing on a MGN rail, ZYLtech will determine which length rail to use for the custom length specified. There will be no “cut off” pieces from custom lengths.

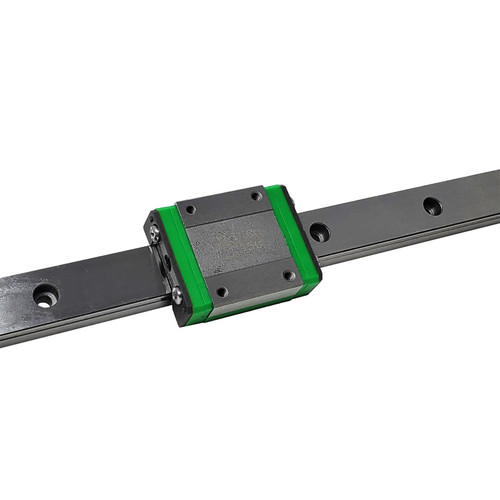

Genuine ZYLtech MGN15 linear and MGN15C carriage block are both real grade C with the following details:



  • Precision grade C grounded and polished
  • Interchangeable bearing blocks/slider carriage for versatile configuration
  • Dimensional tolerance of height H and width N: +/- 40microns
  • Maximum travel distance error: +/- 17 microns per 300mm and +/- 23 per 1000mm



MGN15 rail ⌀3.5mm mounting hole spacing is 40mm

MGN15C carriage block size 32x42mm, M3 mounting hole spacing 25x20mm



The listing is for one rail plus one or two carriage blocks . For light duty applications(such as laser engraver or 3D printer) , it's acceptable to use one rail per one axis. It's most common to use two rail and two carriage blocks per rail for one axis.




2 Reviews Hide Reviews Show Reviews

  • 5
    MGN15C Linear Rail Assembly

    Posted by MARK NICHOLS on Oct 25th 2022

    These linear rail assemblies perform as well as those from any other manufacturer and are reasonably priced.

  • 5
    Great customer service

    Posted by Budd on Jun 11th 2022

    Minor problem on shipment.
    ZYLTECH immediately solved it.
    Quality parts, great service
