Kit includes the following:
- 1x Mega 2560 R3 Atmega16u2/Atmega2560 Arduino Board
- 1x Ramps 1.6 board w/ jumpers, heat sink and power connector

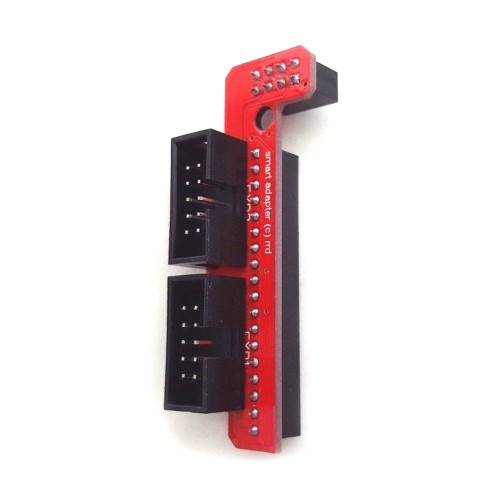

- 1X 12864 Full graphic LCD smart controller (comes with SD-Card reader, rotary encoder, connectors, 2 ft long cables)
- 1X 40" Gold plated/shielded USB cable w/noise suppressor. (Essential for stable connection and printing.)
- 3X Mechanical end-stop switch w/ 40" cable
- 5x A4988 or DRV8825 stepper motor driver (select above)
- 5x Aluminum heat sink w/ 3M heat conductive tape backing
New ZYLtech RAMPS 1.6 3D Printer Shield for Arduino
Features:
- Larger bed MOSFET
- Screw terminal power connection is safer and more reliable
- Larger heat sink for more efficient heat dissipation
- Surface-mounted fuses and flush MOSFETS
Specs:
- 101.5mm x 60.5 (67.5 including reset button protrusion) x 30mm thickness overall
- 4 layer PCB
- Input Voltage - 12V
- Power - 200W
- Driver Support - A4988, DRV8825, TMC2130, TMC2208 (up to 5 stepper motors supported)
If you need a 1.4 board they are also available here:
