ZYLtech HyperCube Full DIY Kit - 300mm Cubic Build Volume w/ Dual Z

(4 reviews) Write a Review

Please see David Wille's Thingiverse page for more information.  https://www.thingiverse.com/thing:3291672


Full, unassembled HyperCube 3D Printer - 300mm x 300mm x 300mm build volume with dual Z. (Note: printed parts are not included.)

Please allow 3-7 business days to process your order (plus shipping time). You will receive email notifying you once your order has been processed.

Visit the ZYLtech HyperCube Users group on Facebook for help and to see what other ZYLtech HyperCube users are up to!

Additional helpful links and files (including the 3d printed parts needed to assemble the ZYLtech HC) can be found on the ZYLtech HyperCube Product and Information page.


Please note - though there is a ton of support in the 3d printing community for the HyperCube and DIY 3d printers in general, we do not suggest the ZYLtech HyperCube as a first printer. We strongly recommend that only experienced 3d printing hobbyists and professionals consider purchasing any of the ZYLtech HyperCube kits. Please also note that we are unable to provide anything more than basic support, and that will primarily be for the purpose of directing you to the plethora of free resources in the DIY 3d printing community, many of which are linked above



This Complete Unassembled Kit Includes the Following Components:


Frame Kit
2020 Aluminum Extrusion
  • ​​6x 440mm (X and Y)
  • 4x 400mm (Y)
  • 4x 600mm (Z)
  • 2x 410mm (Bed)
  • 2x 235mm (Bed)
  • 1x 430mm (Dual Z Bed)

  • 150x M5 hammer nuts
  • 150x button head M5x8
  • 48x 90 degree bracket (2028)
  • 4x 2020 - 90 degree angle brackets (bed frame)
Motors, Electronics, & Accessories Kit
  • 5x Nema 17 Stepper Motor 1.5 A, 0.42 Nm, 59 ozin
  • 3x Mechanical Endstop Switch
  • 1x ZYLtech RAMPS 1.4 3D Printer Shield
  • 1x ZYLtech MEGA 2560 R3 Board ATMEGA16U2
  • 1x ZYLtech RAMPS 1.4 3D Pinter 12864 LCD Smart Controller
  • 4x DRV8825 Stepper Motor Driver Module + Heat Sinks
  • 1x 12V DC 50mm Radial Cooling Fan
  • 1x 12V 30A 360W Power Supply Unit
  • 2m 12 AWG Silicon Wire X2 (Black/Red)
  • 10m 18AWG 4 Conductor Shielded Wire
  • 6x Bed Levelling Kit (Screw/Spring/Knob)
  • 1x 100k Thermistor w/ Kapton Tape
  • 1x ZYLtech E3Dv6 Clone Kit
  • 1 x Inductive Proximity Sensor (version dependent upon Heated Bed option selected - see below)
  • 1x Power Switch/Connector
  • 1x 210A Heated Bed Power Expansion Module MOSFET
  • 4x M3x14 (for hot end fan)
  • 2x M4x8 + 2x M4 Hammer Nuts (for extruder mount)
  • 2x M3x6 (for Y endstop)
Drive System Kit
  • ​​​​2 x 8mmx600mm Hardened Steel smooth rod for Z axis
  • 2 x 8mmx400mm Hardened Steel smooth rod for Y axis
  • 2 x 10mmx470mm Carbon Fiber tube for X axis
  • 4 x Igus JSM-1012-10
  • 4 x LM8UU linear bearing for Z axis
  • 2 x T8x8 400mm Lead Screw
  • 2 x LM8LUU linear bearing for Y axis
  • 2 x Brass T8x8 Anti-Backlash Nut (common flange)
  • 2 x 5mm/8mm Aluminium Flexible Shaft Coupler
  • 16 x F623ZZ Flange Bearing
  • 1 x 5M GT2 Belt
  • 2 x 2GT-20 Teeth Timing Pulley
  • 1 x 1m PTFE Tube
  • 1 x Push Fit Connector M6

  • 5x M5x10 pan head screws
  • ​12x M3x25 pan head screws
  • ​45 x M3 x 10mm pan head screws ​
  • 45 x M3 x 20mm pan head screws
  • 2 x M3 x 6mm pan head screws
  • 35 x M3 Nyloc nuts
  • 35 x M3 Hex nuts
  • 2 x M3 x 35mm pan head screws


​Heated Bed Options

Standard Heated Bed includes standard 12v 300mm x 300mm build area aluminum heated bed. No modifications required to the standard ZYLtech HyperCube 300 w/ dual Z frame and drive system builds. Easily customizable and upgradeable. Conveniently pre-soldered with surface-mount LED and resistor.

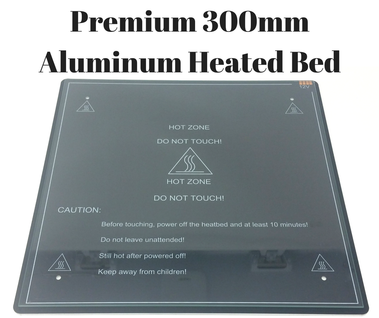

Premium Heated Bed includes the following upgrades over the Standard Heated Bed option:
  • Upgraded 220W / 12V Aluminum Heat Bed w/ 300mm x 300mm build area - OEM heat bed for Creality CR-10 3D Printers
  • 300mm+ x 300mm+ Borosilicate ("boro") glass
  • 300mm x 300mm PEI sheet (pre-installed on boro glass)
  • Additional hardware and aluminum extrusion required to modify standard ZYLtech HC 300 w/ Dual Z frame (in order to account for the different hole pattern versus standard bed) - 2x 170mm 2020
  • Upgraded proximity sensor (required due to addition of PEI and boro glass)



4 Reviews Hide Reviews Show Reviews

  • 5
    Solid and well packaged

    Posted by Brian on Jan 10th 2020

    I bought this kit to put together a hypercube 300 remix. The kit shipped quickly and came well packaged. I inspected each piece to make sure it was cut to the right length and/or was in good shape. All of the extensions are cut exact and were still in protective plastics. I haven’t put the whole thing together yet but I would be surprised if anything is off.

  • 5
    ZYLtech 300mm dual Z Hypercube

    Posted by Sean Fell on Aug 28th 2019

    This kit is just awesome, ZYLtech Kit has everything you need. This is not a kit for beginners, you will need to 3D print parts for a 3D printer. Very well priced and fast delivery. I will be buying another one soon.

  • 5
    Great Kit

    Posted by Kevin Karan on Jan 31st 2019

    Great kit, I am getting great quality prints out of it. Had one issue with one of the carbon rods which their support was able to fix.
    Their shipping is really fast.
    The only thing I didn't like was the probe. I ended up using a BLTouch probe instead of the included probe as I couldn't get it to work consistently.

  • 5
    James Allen

    Posted by James Allen on Aug 6th 2018

    Best 3d printer for the price. I built my first HC 300 almost a year ago and it still continues to make very good 3d parts and models. This is my second HC 300 and I also have an HC 200. Outstanding HC community support too.
